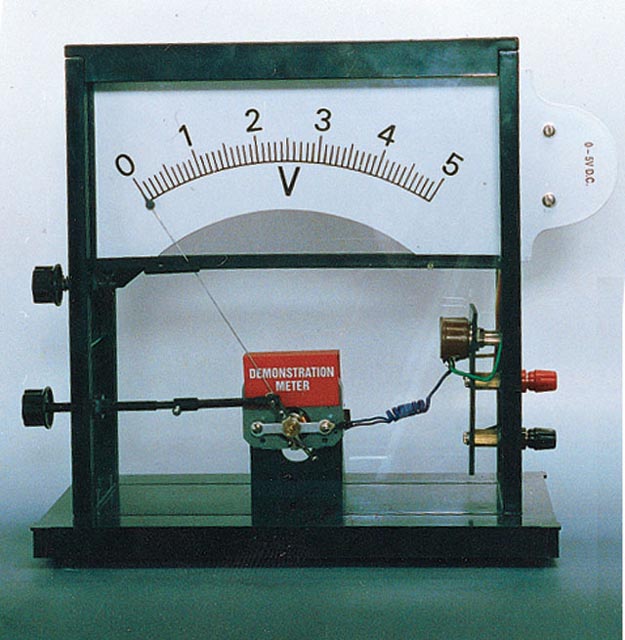

Meter Demonstration + Set/15 Dials

$322.00 excl. GST

Cat. No. 42MDS Category:


High quality coil, spring–controlled movement with full scale deflection of 5mA or 100mV DC. Interchangeable dials with their own couplers connect appropriate resistors, shunts or rectifiers to convert the instrument to the range as displayed on the scale for any particular dial. Scales are marked on both sides. Zero adjuster allows for centre zero dials. Supplied with the following 15 dials:
DC current: 10-0-10mA, 0-500mA, 0-5A, 0-10A, 50-0-50mA, 0-1A
AC current: 0-500mA, 0-1A, 0-5A, 0-10A,
DC voltage: 0-5V, 0-15V
AC voltage: 0-5V, 0-15V
Galvanometer 50-0-50MV
(other dials available upon request).

PDF Instruction Sheet
