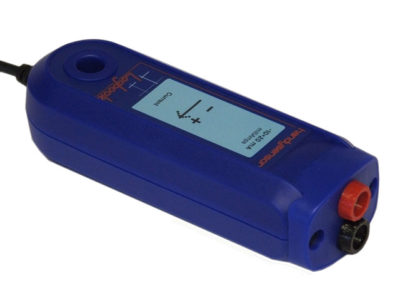

VOLTAGE SENSOR +/- 20 VOLTS
$128.00 excl. GST
Out of stock
This sensor will give an accurate reading of voltage in any circuit configuration with a supply voltage of less than 20Volts.Logger compatibility: ScienceScope Type 3 (See ScienceScope website for details)
±20 volts resolution 0.05 volts
Maximum recording frequency with Datadisc is 61 microsecondsThe four voltage sensors allow all possible types of investigation to be carried out.Voltage and current sensors can be used together anywhere in a circuit with a supply voltage of up to 24 volts with no interference between sensors. All work from DC to 10KHz.Derived Sensors:
Power Energy Current (if circuit resistance is known) RMS Voltage Resistance (requires a current sensor)Typical Investigations AC and DC currents Current and voltage in a diode Current and voltage in a filament bulb Current and voltage in a LDR Current and voltage in a resistor Current and voltage in a thermistor Energy consumption Relationship between power, voltage and current Resistance in a circuit Induced e.m.f.
