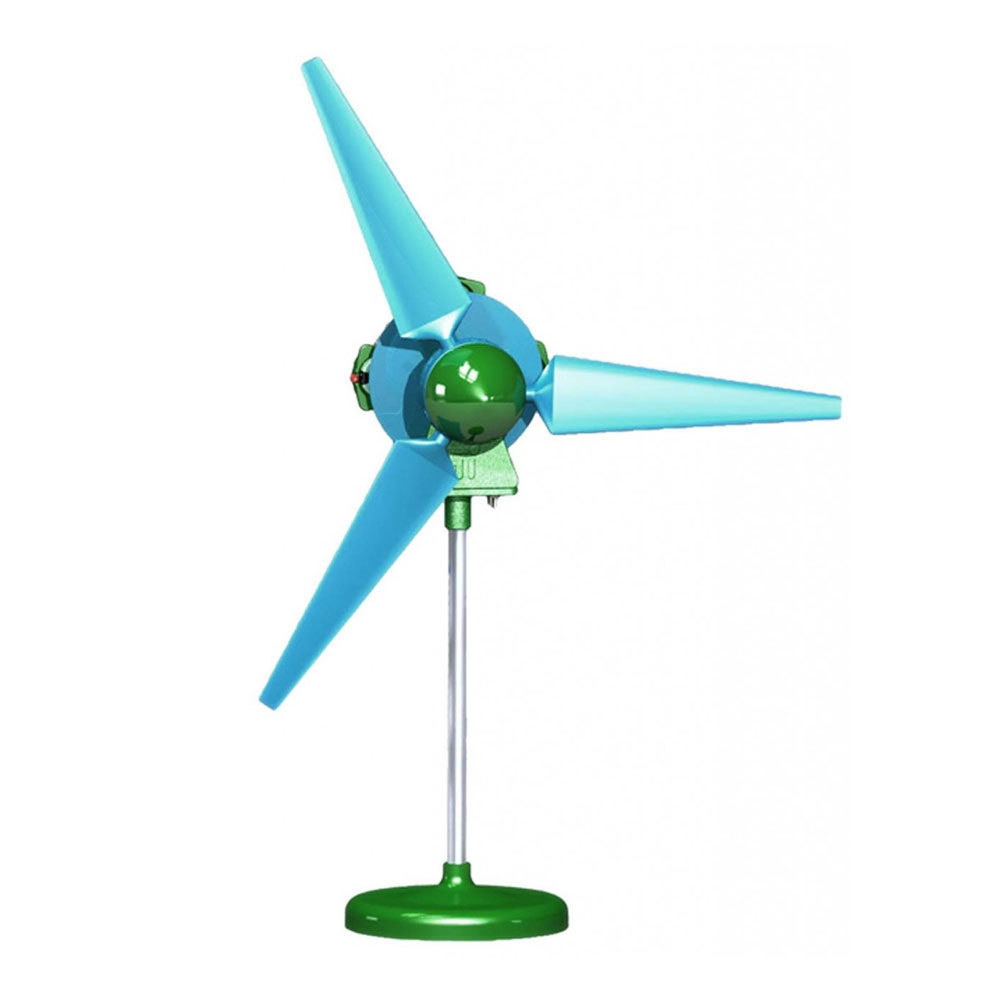

SKY-Z Standard Wind Education Kit - Basic (AC)

The SKY-Z Standard Wind Education Kit introduces wind energy and electrical generation through a compact, customisable turbine. Students can build the generator using magnets and coils and investigate how turbine configuration affects power generation.

Key Features

• Three 8-inch blades with three-blade hub
• Blade pitch built into the hub
• DIY generator using four coils and four magnets
• Produces alternating current (AC)
• Built-in LED indicates generated power
• Generates up to 1 W of power
• Can be extended with different blade sizes and a six-blade hub

Specifications

• Weight: 1.24 kg
• Assembled blade-to-floor height: 650 mm
• Assembled nose-to-floor height: 450 mm
• Base: 160 mm
