Rheostat/Potentiometer Rotary W/W 100W 5 Ohm 4.5A

Description

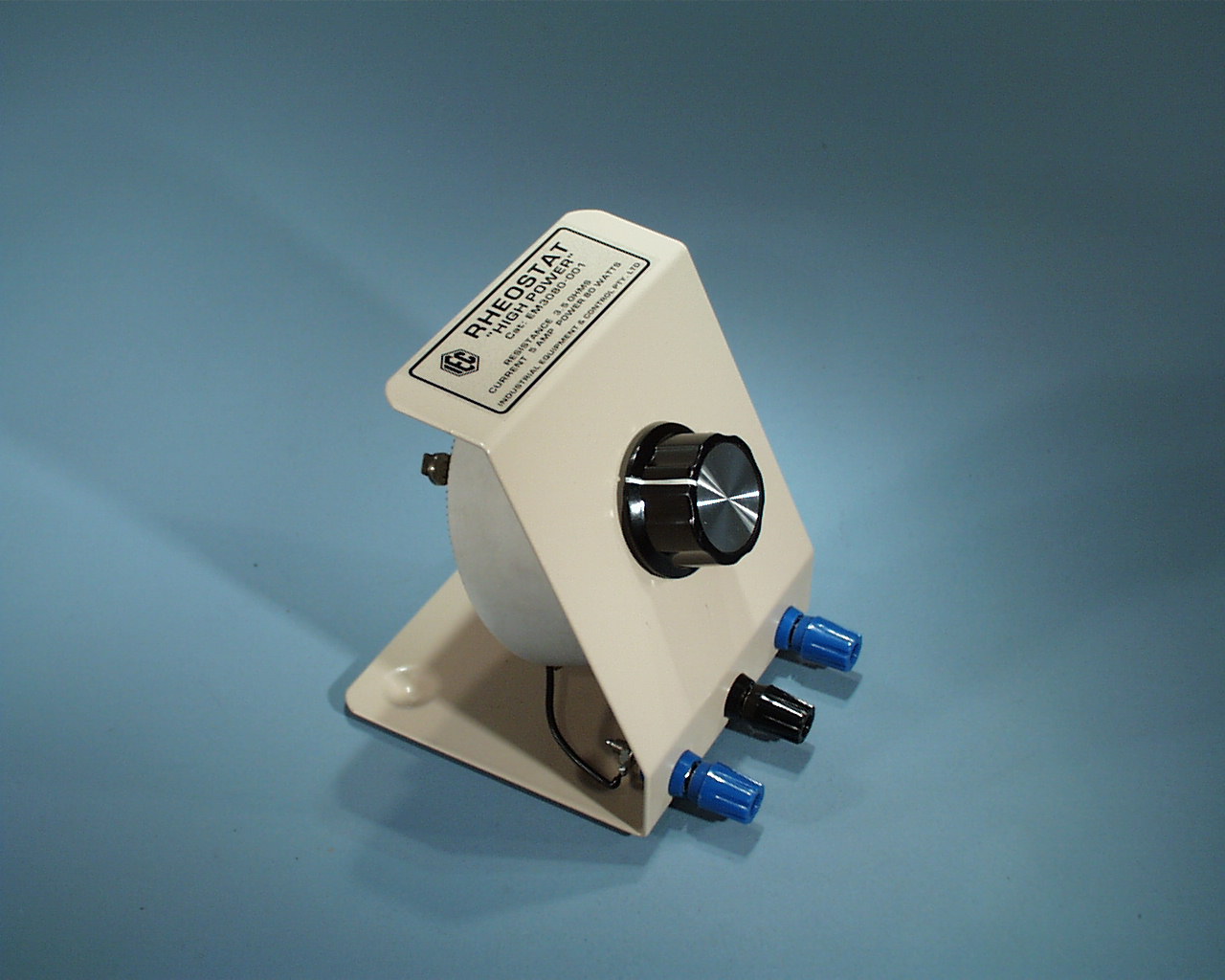

This ROTARY RHEOSTAT is a general purpose high power rotary rheostat mounted on a solid bench stand.

Care is to be taken: Supervision is required when using this instrument; read the Instruction Sheet below.

Specifications:
Resistance of the winding: approx.3.5 Ohms
Maximum voltage to be applied across the winding: 16 Volts.
Maximum current to pass through the winding: 5 Amps
Maximum power dissipation of the instrument: 80 watts.
Connection terminals: 3x IEC type, 4mm socket head, spin free design.

PDF Instruction Sheet
