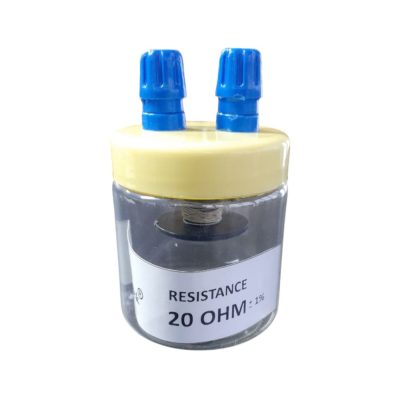

Resistance Coil 20 Ohm W/Terminals

Description

These resistance coils are designed to be used as a standard resistor in circuits of Wheatstone Bridge and similar. (NOTE: They are not designed to be a high power load resistor.)

The resistance coil is housed in a simple transparent polystyrene housing with a screw top lid. The resistance is wound, stretched and soldered directly to the two nickel plated brass terminal stems. Connections to circuits are made from insulated 4mm socket head spin free terminals.
