Mini Projectile Launcher with Photogates – 16mm

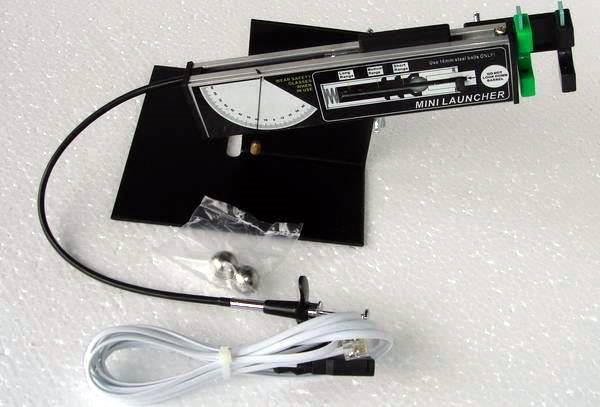

The Mini Projectile Launcher with Photogates is a compact physics apparatus for investigating projectile motion, launch angle and initial velocity. Designed for bench-top or bench-to-floor experiments, it launches 16mm steel balls at three selectable spring settings to support repeatable investigations.

An adjustable angle scale with protractor and plumb line allows launch angles from −45° to +90° relative to horizontal. The magnetic piston helps keep the ball centred in the barrel, while a cable release minimises movement of the launcher during firing. Integrated mini photogates can connect to the compatible 45TDL Large Digital Timer for electronic timing measurements; the timer is sold separately.

Key Features

• Three selectable spring propulsion settings
• Adjustable launch angle from −45° to +90°
• Protractor and plumb line for setting launch angle
• Magnetic piston to help guide the projectile without contact with the barrel sides
• Cable release for smoother launches
• Integrated mini photogates for use with compatible timer
• Free-standing design or bench mounting using a suitable clamp
• Two 16mm steel balls supplied

Specifications

• Projectile diameter: 16mm
• Supplied projectiles: 2 steel balls
• Launch settings: 3
• Launch angle range: −45° to +90° from horizontal
• Compatible timer: 45TDL Large Digital Timer (not included)

Educational Applications

• Investigating projectile trajectories and range
• Exploring the effect of launch angle and initial speed
• Comparing experimental results with predictions for projectile motion

Safety and Operation

For supervised school physics demonstrations and experiments. Use suitable eye protection, keep people clear of the launch path and landing area, and secure the launcher appropriately before firing. Follow the manufacturer's instructions and never aim the launcher at a person.

Related Equipment

Pair this launcher with the 45TDL Large Digital Timer for photogate timing. The 45PPL Mini Projectile Launcher without Photogates is available as an alternative.
