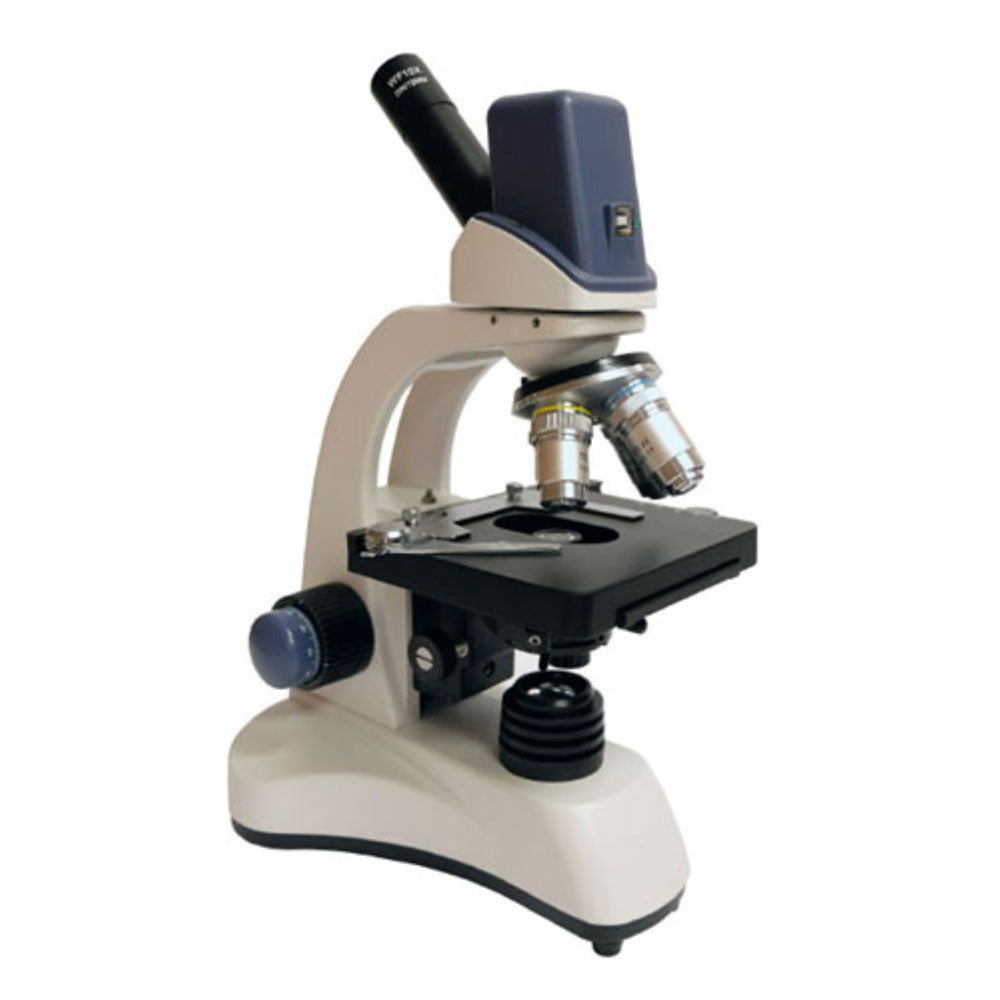

Digital Monocular Microscope with USB Camera – 1.3MP

This versatile digital monocular microscope functions both as a traditional optical microscope and a USB-connected digital microscope. Ideal for education and laboratory use, it allows image and video capture via computer.
Note: Designed for use with a single computer; not intended for networked systems.

Hardware Features:

• Monocular head with 45° inclined viewing tube and built-in 1.3MP CMOS USB camera
• Includes compatible software for Windows 7, 8, 10 and Mac OS X
• Quadruple revolving nosepiece on smooth ball bearings
• Durable triangular base with a modern, easy-clean finish for enhanced stability
• Objectives: 4x, 10x, and 40x
• Eyepiece: 10x Wide Field (WF)
• Adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
• Coaxial coarse and fine focus:
  • 200 graduations
  • 12.5 μm per graduation
  • 2.5 mm per rotation
  • Total travel: ~15 mm
• Bright 1W LED illumination with built-in power supply and dimmer control
• Stage: 123 x 128 mm plain stage with integrated 70 x 27 mm X-Y mechanical stage
• Power: 240V AC with on/off switch, mains lead and plug included

Software Features (ImageFocus Plus):

• Capture high-resolution images and videos
• Save images in .jpg, .tif, .bmp, .dicom formats
• Save videos in .avi format
• Add annotations and perform measurements on live or captured images
• Compatible with Windows 7, 8, and 10 (32 & 64-bit)
• Mac OS version also available

Downloads:

• S-Viewer Software
• Software Instruction Manual
