Microscope Monocular Junior / Senior

Description

Monocular Microscope for teaching Junior and Senior microscopy. Slightly larger than the Junior Cat. 44MMJA2 and with an additional fine focus knob (to enhance detail at 400x magnification), built-in LED lamp and iris diaphragm.
Features:

• NZ electrically certified
• Monocular eyepiece tube with 45° inclined eyepiece tube
• Revolving nosepiece for three objectives on ball bearings
• 4x, 10x, 40x Achromat objectives
• Wide field WF 10x/18 mm eyepiece
• built-in long-life 1W LED with integrated power supply for top performance illumination
• Lockable widefield 10x eyepiece with pointer
• Plain Stage 123 x 119 mm with spring-loaded stage clips for easy slide placement

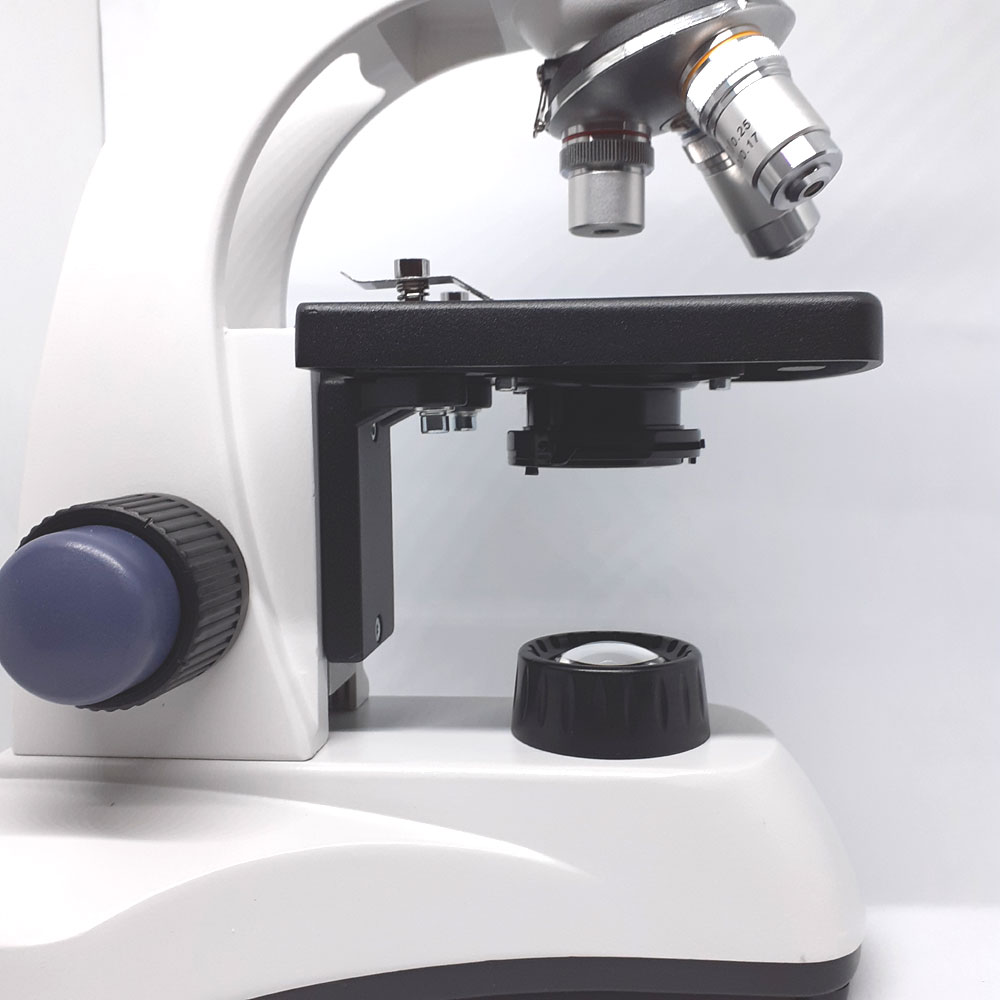

• Iris diaphragm Condenser, N.A. 0.65
• Daylight Blue filter
• Rack and pinion stage
• Bilateral coaxial coarse & fine focus knob; 200 graduations, 12.5 µm per graduation, 2.5 mm per rotation, total travel approximately 15 mm
• Die-cast rugged metal housing
• Adjustable stage stop (prevents damage to 40x lens)
• 40X to 400X magnification
• AC 240V, 50/60Hz
• Dust cover, spare fuse, x2 Allen Keys
