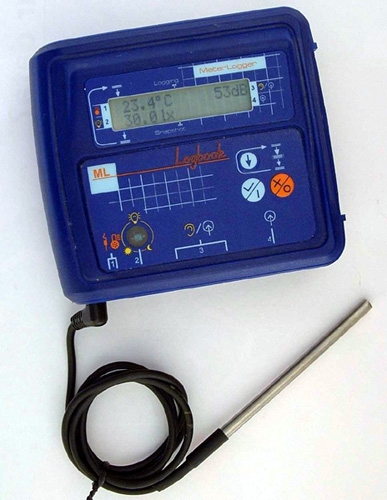

LOGBOOK ML DATA LOGGER WITH INBUILT TEMP LIGHT & SOUND SENSORS USB

Description

Logbook ML is aimed at the keen remote datalogger user and is suitable for use from KS3 to A-level. Logbook ML Specification:

Datadisc compatible
Multi-functional LCD display (Meter/Recording/File/Logger Status/Timing)
3 user buttons
8 file memory
Serial or USB communications with a PC
3 internal sensors (temperature/light/sound)
2 inputs for Datadisc/Philip Harris compatible sensors (1 shared with internal sound sensor)
Temperature probe which over-rides the in-built sensor included.
Auto-recognition for all compatible sensors
9V battery operation
Files may be locked to prevent accidental deletion
Time and Date function.

Remote mode:

Maximum number of data points:  500/4 channels
Recording modes: Auto and Snapshot

PC Connected operation. Wide range of recording types and facilities provided by Datadisc Au Fast timing with a minimum recording interval of 61µs. Recording types Triggered, Auto-time, Sensor-auto, Fast, Snapshot, X-Y Version. The version of the Logbook ML is shown on the display of the Logbook ML when you first turn it on.  The Logbook ML screen has 2 lines and the top line says ‘Logbook ML Vx.xx’, where x.xx is the version number.
