IEC Hodson Light Box and Optical Kit

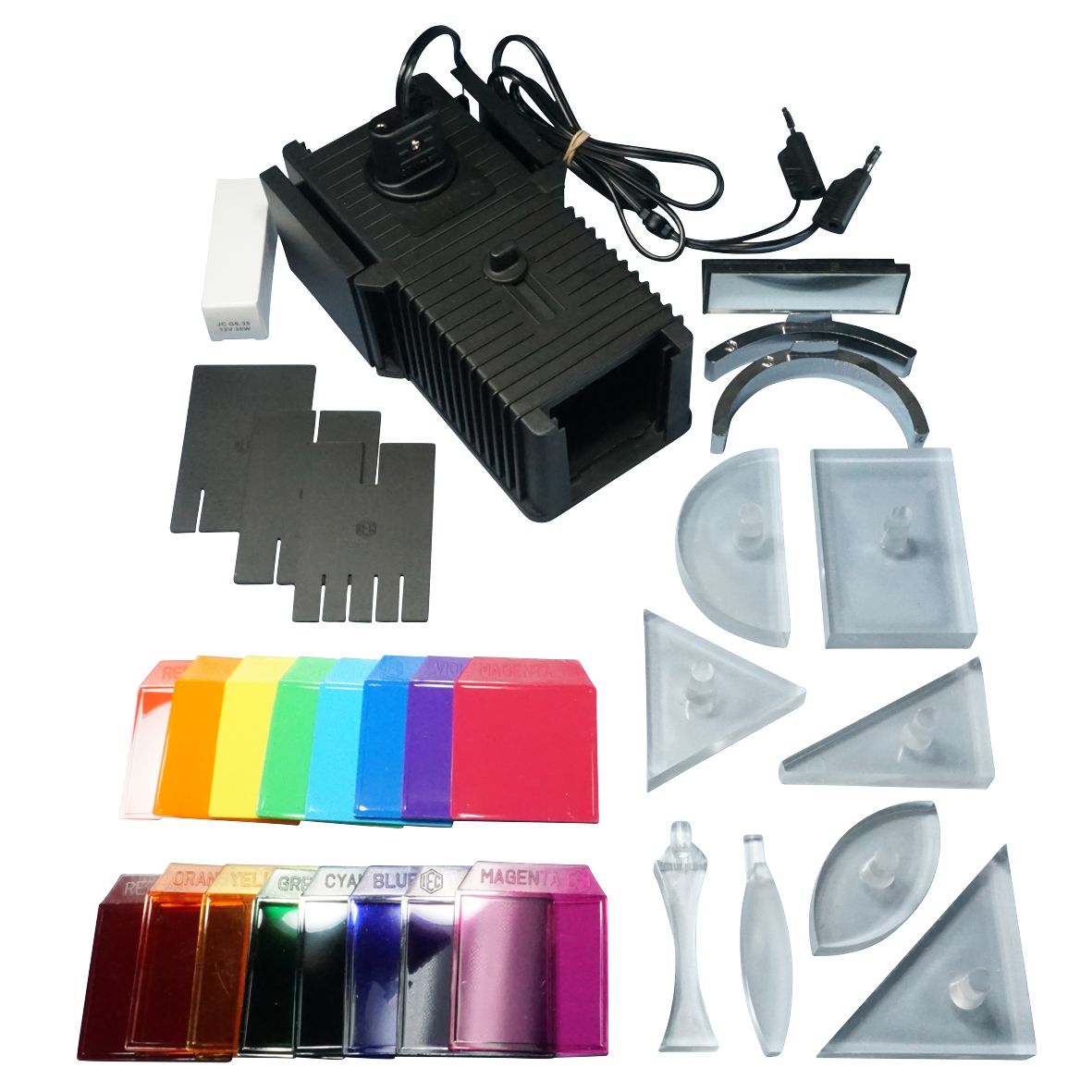

The IEC ‘Hodson’ Light Box and Optical Kit is designed for hands-on investigations of light, reflection, refraction and colour mixing in school science laboratories. It combines a robust light box with optical accessories in a compact three-section styrene foam storage case.

The light box uses a 12V 30W quartz iodine (QI) lamp. Its lamp socket and moulded, stackable banana-plug leads allow two light boxes to be connected together for suitable demonstrations.

Key Features

• IEC Hodson light box: Durable design for regular classroom use
• 12V 30W QI lamp holder: Designed for the specified low-voltage lamp
• Moulded, stackable banana-plug leads: For connection to a suitable power supply
• Fixed lens adjuster: Designed to prevent removal by students
• Durable mirrors: For reflection experiments
• 3 slit formers: Produce light rays for optics investigations
• 8 colour filters and 8 colour-mixing plates: For colour experiments
• Three-section styrene foam housing: Organises and protects the components
• Replacement components available: Individual parts can be purchased separately

Classroom Applications

• Investigating reflection and refraction
• Tracing light rays and constructing ray diagrams
• Exploring colour filters and colour mixing
• Practical optics experiments in secondary school physics

Compatible Power Supply and Replacement Parts

The 44PST 6V/12V AC Transformer is designed to fit the reserved compartment in the kit's foam housing. Replacement components include the 43LBUHK Upper Optics Kit, 43LBH Foam Housing and 43LBO Replacement Light Box. Power supply and replacement parts are sold separately.

Manufacturer Resources

• Instruction Sheet (PDF)
• Experiment Manual (PDF)

Safety

Use with a suitable low-voltage power supply and follow the manufacturer's instructions. The lamp and surrounding components may become hot during use; allow them to cool before handling or packing away.
