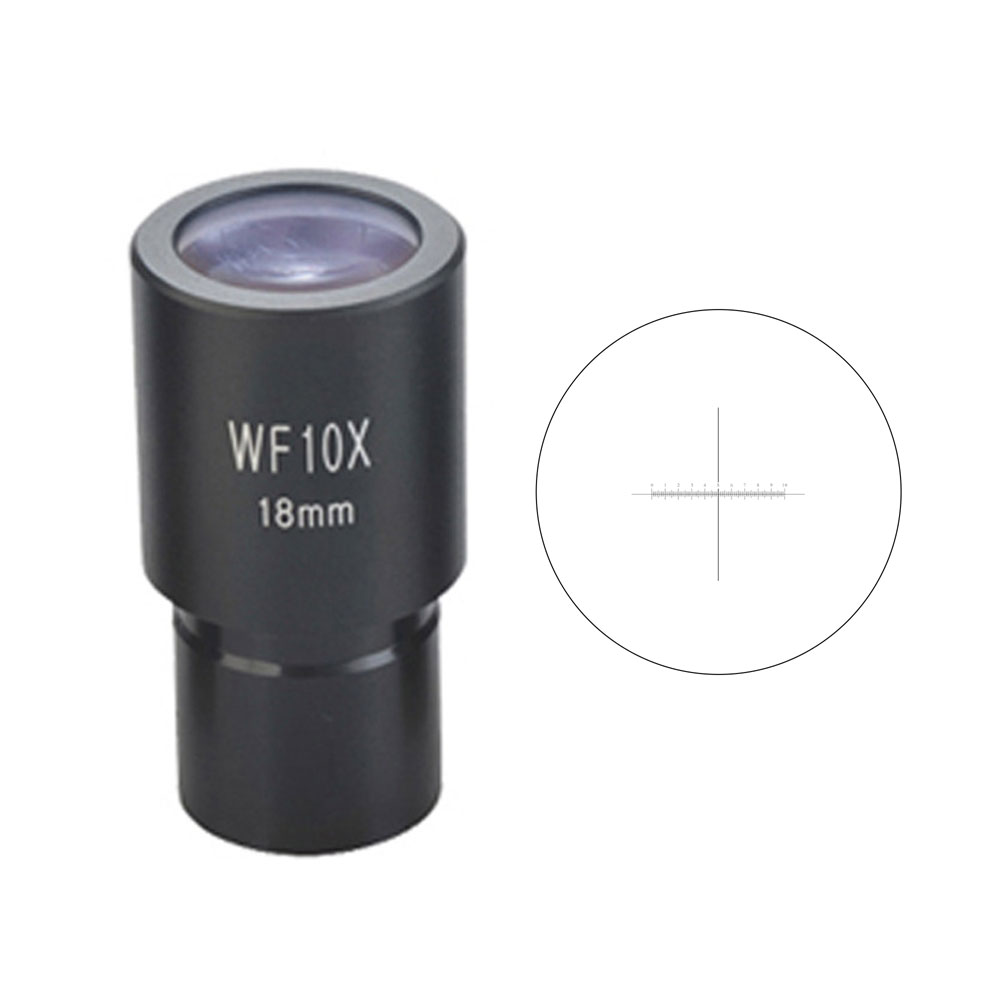

Eyepiece Reticle – WF10X/18 mm, 1 mm Divided into 100 Divisions

This high-precision eyepiece reticle (also known as an eyepiece micrometer) is designed for use with WF10X/18 mm eyepieces, providing a clear graduated scale of 1 mm divided into 100 divisions. It’s ideal for microscopic measurement and particle sizing, and is widely used in teaching, research, and laboratory settings.

To ensure accurate measurements, the reticle must be calibrated using a stage micrometer each time the objective magnification is changed. We recommend pairing it with our Stage Micrometer (Cat. No. 44MLSM) for precise calibration.

Key Features:

• Designed for WF10X/18 mm eyepieces
• 1 mm scale divided into 100 precise divisions
• Also known as an eyepiece micrometer
• Ideal for measuring cells, particles, and microorganisms
• Calibration required when changing objectives
• Optically clear and durable – built for repeated lab use

Applications:

• Cell and tissue measurement
• Particle analysis
• Micrometry in biology, materials science, and microbiology education
