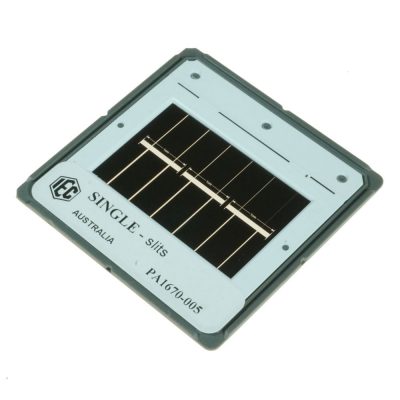

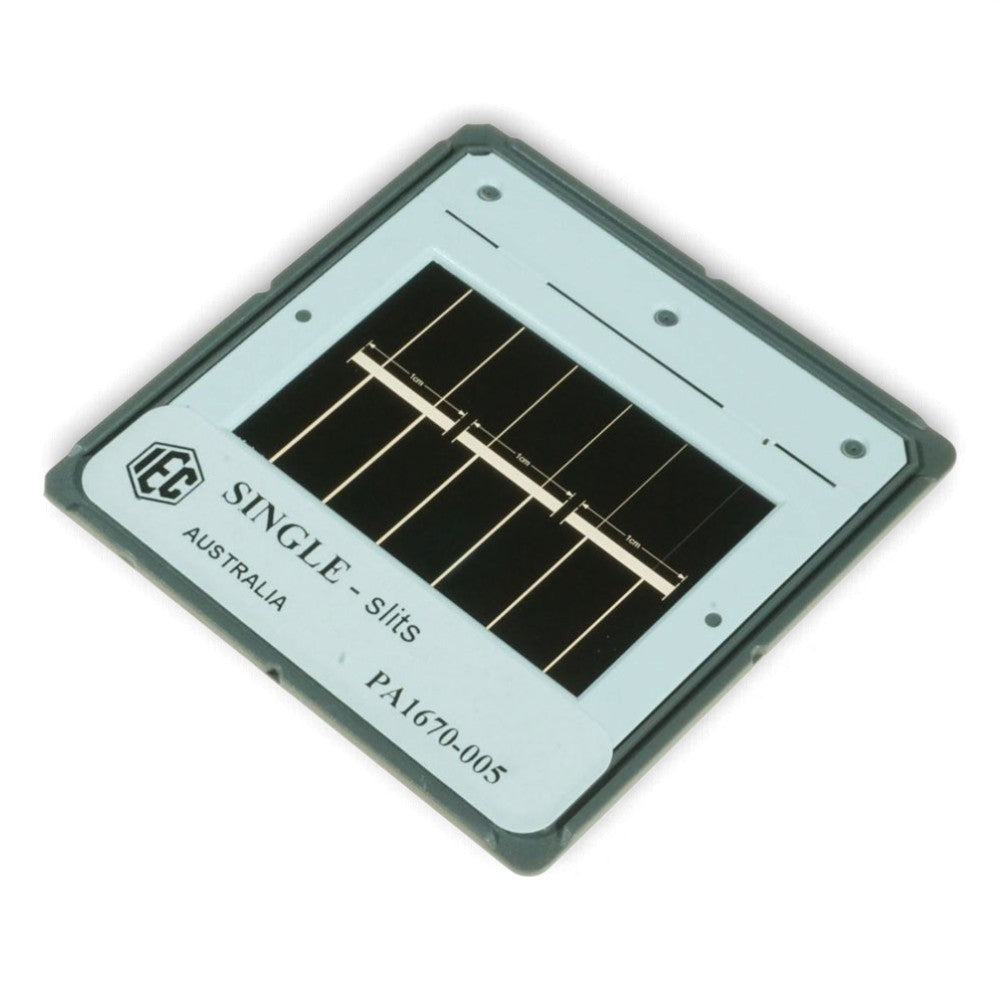

Diffraction Transparency – Single Slit

This single slit diffraction transparency contains 12 labelled slit widths for comparing how aperture width affects light diffraction patterns. Suitable for classroom optics demonstrations and investigations using an appropriate light source.

Key Features

• single slit optical diffraction transparency
• Suitable for school physics and laboratory optics experiments
• Useful for comparing diffraction and interference patterns

Slit Widths

• Upper row (A–F): 0.025, 0.050, 0.075, 0.100, 0.125 and 0.150mm
• Lower row (G–L): 0.175, 0.200, 0.225, 0.250, 0.275 and 0.300mm

Complementary Product

For related wave optics experiments, see the 47DKTDS Diffraction Transparency, sold separately.
